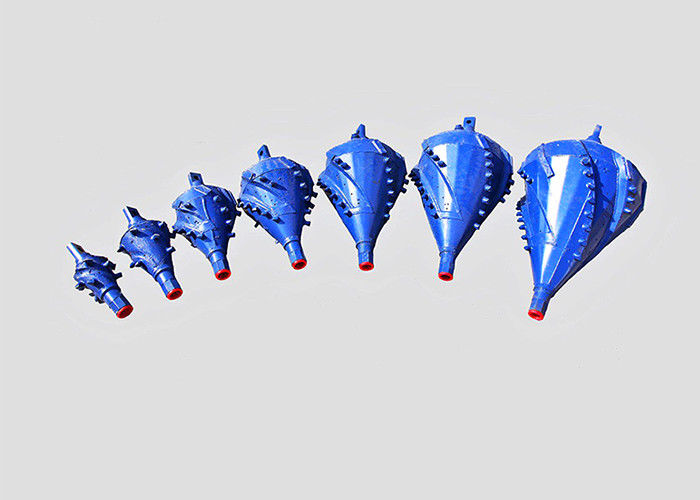

Blue HDD Reamer , Directional Drilling Reamers Cutter Beast Fluted Barrel
Blue HDD Reamer , Directional Drilling Reamers Cutter Beast Fluted Barrel
Blue HDD Reamer , Directional Drilling Reamers Cutter Beast Fluted Barrel

Blue HDD Reamer , Directional Drilling Reamers Cutter Beast Fluted Barrel

Product Details

Place of Origin: Wuxi

Brand Name: cge

Certification: ISST CSTT

Model Number: 120mm-2000mm

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: $200-2000

Packaging Details: plywood case

Delivery Time: 10-12 days

Payment Terms: T/T, L/C, Western Union, D/A, D/P, MoneyGram

Supply Ability: 150-200 pieces per month

Get Best Price

Product Details

Product Description
High Light:

steel drill rod

,

rock drill rods

Diameter:
200mm-1800mm
Usage:
HDD Drilling
Certification:
ISO, API, DCDMA, CMS
Technology:
Trenchless
Diameter:
200mm-1800mm
Usage:
HDD Drilling
Certification:
ISO, API, DCDMA, CMS
Technology:
Trenchless
Blue HDD Reamer , Directional Drilling Reamers Cutter Beast Fluted Barrel
  • Blue HDD Reamer , Directional Drilling Reamers Cutter Beast Fluted Barrel
  •
  • Rock Hole Opener

    ·Available size from φ 300mm to φ 1800mm;
    ·Appropriate for hard and rocky ground condition;
    ·The rolling cutters can be designed with many diversify shape, size and configurations;
    ·The rollers' application results the efficiency and effectives of the reamer;
    ·In order to provide better cutting capability, flow characteristics and low torque, we use a series of mill tooth or tungsten carbide inserts in a set of rollers;
    ·While operating the projects, we would suggest to have a stabilizer reamer or barrel reamer run followed with hole opener.
  •
    Beast Reamer

    ·Available size from φ 200mm to φ 1800mm;
    ·Appropriate for cobbles, shale, river rock, glacial til and hardpan condition;
    ·Structure: Steel Casting;
    ·Mixing and Pumping better;
    ·Deep and spiral channels help carry away cutting, debris and extend the working life of the reamer;
    ·Enlarge the hole by 50-100 mm for every grade.
  •
    Fluted Reamer

    ·Available size from φ200 to φ1800;
    ·Appropriate for sand and medium to very hard soil strata;
    ·Structure: Steel Casting/ Forged;
    ·Large spiral channel helped cutters and mud passed away;
    ·Steel Casting Flued Reamer is a more economic and competitive reamer compare with the forged reamer.
    ·Enlarge the hole by 50-100 mm for every grade.
  •
    Fly Cutter Reamer

    ·Available size from φ200 - φ1800;
    ·Suitable for hard soil strata and strong-mantle rock formations;
    ·Availbale size from φ200 to φ1800;
    ·Appropriate for hard soil strata and strong-mantle rock formations;
    ·Taper design helped reamer action effectively and efficiency;
    ·Reasonable and logical arrangement of the cutters help drilling speed.
  •
    Black Widow Reamer

    ·Available size from φ 120mm to φ 600mm;
    ·Appropriate for soft soil condition;
    ·The design of angle and arrangement of blade and cutters help to maximize the utility of reamer.
  •
    Barrel Reamer

    ·Available size from φ 150mm to φ 1800mm;
    ·Appropriate for soft soil condition;
    ·The rollers' application results the efficiency and effectives of the reamer;
    ·Flat and smoother shape aims to stabilize the drilling hole and reduce the loose of rocks, soil and cutters.
  • Blue HDD Reamer , Directional Drilling Reamers Cutter Beast Fluted Barrel 0Blue HDD Reamer , Directional Drilling Reamers Cutter Beast Fluted Barrel 1
